Winter Ipike W409 Tire (Hankook Tires)

Shop » Hankook Tires 2010 » Passenger Car » Winter
Audio Accounts Products Images

ALL PRICING INCLUDES WEST HERR TIRE SERVICE  CENTER VALUE PACKAGE

CLICK HERE

TO VIEW VALUE PACKAGE

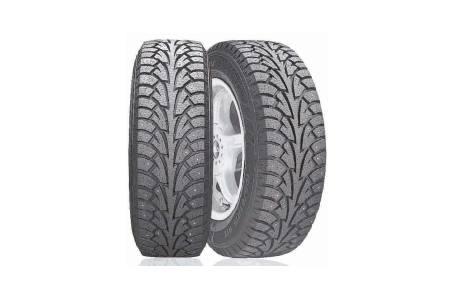

Winter Ipike W409 Tire
Click here to view full image.
This product is part of
Hankook Tires 2010
  • Description
  • Features
  • Notes
  • Request a Quote
  • Send to a Friend
Hankook's newest high performance winter tire, with its 'v' - shaped tread design, delivers exceptional traction and control for all winter driving conditions.


New Stud Technology: The regular three-row studs were increased to six rows, thereby enhancing traction and minimizing stud noise.


Increased Total Kerf Length: Maximum winter performance is ensured by enhancing the kerf edge effect on snowy or icy roads.


Square Profile: Vehicle performance dramatically improves through the square profile designed with SCCT (Stiffness Control Contour Theory) technology and sidewall stiffness control.


Footprint Shape: Optimal foot print shape deprived by FE (Computer Simulation) using the MSDB system. Wider contact area with the ground improves wear and ice traction.
  • Diagonal Serrated Band
  • 55-75 Series
  • S & T-Rated
Meets the severe snow service requirement of the
Rubber Manufacturer's Association (RMA)
Product Information
Name:Winter Ipike W409 Tire
Manufacturer:Hankook Tires
Additional Contact Information

Fill out your contact information to request a quote for this product, or contact us at the number below.

Phone:(716) 926-0362
Fax:(716) 926-0360
Contact Information
*First Name:*Email:*Phone:Address 1:City:Postal Code:How did you find our Web site?*Last Name:*Confirm Email:Country:
Address 2:Region:
Purchase Time Frame:
Comments:
*Required fields.
Send to a Friend

Recommend this product to a friend by entering up to 4 complete email addresses below.

Product Information
Name:Winter Ipike W409 Tire
Manufacturer:Hankook Tires
Additional Contact Information

No Spam: We're committed to your privacy. The email addresses you enter will be used for this referral only.

Product Options

  Description   Our Price (USD)
Part#: 1007123
TIRE SIZE: 175/7OR13
LOAD INDEX: 82
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 4.5
RIM WIDTH (max): 6.0
RIM WIDTH (standard): 5.0
SECTION WIDTH: 6.9
MAX LOAD (SINGLE): 1,047
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 5.5
REVs PER MILE: 911
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 22.8
WARRANTY: Limited
 Request a Quote

Part#: 1007090
TIRE SIZE: 185/60R14
LOAD INDEX: 82
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 14
RIM WIDTH (min): 5.0
RIM WIDTH (max): 6.5
RIM WIDTH (standard): 5.5
SECTION WIDTH: 7.4
MAX LOAD (SINGLE): 1.047
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.1
REVs PER MILE: 911
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 22.8
WARRANTY: Limited
 Request a Quote

Part#: 1008135
TIRE SIZE: 195/60R14
LOAD INDEX: 86
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 14
RIM WIDTH (min): 5.5
RIM WIDTH (max): 7.0
RIM WIDTH (standard): 6.0
SECTION WIDTH: 7.8
MAX LOAD (SINGLE): 1,168
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.5
REVs PER MILE: 891
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 23.3
WARRANTY: Limited
 Request a Quote

Part#: 1006475
TIRE SIZE: 175/65R14
LOAD INDEX: 82
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 14
RIM WIDTH (min): 5.0
RIM WIDTH (max): 6.0
RIM WIDTH (standard): 5.0
SECTION WIDTH: 6.9
MAX LOAD (SINGLE): 1,047
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 5.7
REVs PER MILE: 927
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 22.4
WARRANTY: Limited
 Request a Quote

Part#: 1007122
TIRE SIZE: 185/65R14 XL
LOAD INDEX: 90
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 14
RIM WIDTH (min): 5.0
RIM WIDTH (max): 6.5
RIM WIDTH (standard): 5.5
SECTION WIDTH: 7.5
MAX LOAD (SINGLE): 1.323
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.1
REVs PER MILE: 883
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 50
OVERALL DIAMETER: 23-5
WARRANTY: Limited
 Request a Quote

Part#: 1007125
TIRE SIZE: 175/70R14
LOAD INDEX: 84
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 14
RIM WIDTH (min): 4.5
RIM WIDTH (max): 6.0
RIM WIDTH (standard): 5.0
SECTION WIDTH: 7.0
MAX LOAD (SINGLE): 1,102
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 5.5
REVs PER MILE: 871
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 23.8
WARRANTY: Limited
 Request a Quote

Part#: 1007124
TIRE SIZE: 185/70R14
LOAD INDEX: 88
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 14
RIM WIDTH (min): 4.5
RIM WIDTH (max): 6.0
RIM WIDTH (standard): 5.5
SECTION WIDTH: 7.4
MAX LOAD (SINGLE): 1,235
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 5.8
REVs PER MILE: 852
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 24.4
WARRANTY: Limited
 Request a Quote

Part#: 1007970
TIRE SIZE: P185/75R14
LOAD INDEX: 89
SPEED RATING: S
SIDEWALL: DSB
RIM SIZE: 14
RIM WIDTH (min): 4.5
RIM WIDTH (max): 6.0
RIM WIDTH (standard): 5.0
SECTION WIDTH: 7.1
MAX LOAD (SINGLE): 1,290
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 5.7
REVs PER MILE: 830
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 25.0
WARRANTY: Limited
 Request a Quote

Part#: 1006999
TIRE SIZE: PI 95/75R14
LOAD INDEX: 92
SPEED RATING: S
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 5.0
RIM WIDTH (max): 6.5
RIM WIDTH (standard): 5.5
SECTION WIDTH: 7.6
MAX LOAD (SINGLE): 1.400
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.0
REVs PER MILE: 812
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 25.6
WARRANTY: Limited
 Request a Quote

Part#: 1007000
TIRE SIZE: P205/75RL4
LOAD INDEX: 95
SPEED RATING: S
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 5.0
RIM WIDTH (max): 7.0
RIM WIDTH (standard): 5.5
SECTION WIDTH: 7.9
MAX LOAD (SINGLE): 1,532
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.3
REVs PER MILE: 792
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 26.2
WARRANTY: Limited
 Request a Quote

Part#: 1007128
TIRE SIZE: 195/55R15 XL
LOAD INDEX: 89
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 15
RIM WIDTH (min): 5.5
RIM WIDTH (max): 7.0
RIM WIDTH (standard): 6.0
SECTION WIDTH: 7.9
MAX LOAD (SINGLE): 1,279
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.7
REVs PER MILE: 884
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 50
OVERALL DIAMETER: 23.5
WARRANTY: Limited
 Request a Quote

Part#: 1006802
TIRE SIZE: 195F60R15
LOAD INDEX: 88
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 5.5
RIM WIDTH (max): 7.0
RIM WIDTH (standard): 6.0
SECTION WIDTH: 7.9
MAX LOAD (SINGLE): 1,235
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.5
REVs PER MILE: 858
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 24.2
WARRANTY: Limited
 Request a Quote

Part#: 1006910
TIRE SIZE: 205/60R15
LOAD INDEX: 91
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 15
RIM WIDTH (min): 5.5
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 6.0
SECTION WIDTH: 6.2
MAX LOAD (SINGLE): 1,356
TREAD DEPTH (32nds): 72.5
TREAD WIDTH: 6.8
REVs PER MILE: 841
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 24.7
WARRANTY: Limited
 Request a Quote

Part#: 1007097
TIRE SIZE: 21 5/60R15
LOAD INDEX: 94
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 6.0
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 6.5
SECTION WIDTH: 8.7
MAX LOAD (SINGLE): 1,477
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.1
REVs PER MILE: 824
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 25.2
WARRANTY: Limited
 Request a Quote

Part#: 1006474
TIRE SIZE: 18W65R15
LOAD INDEX: 88
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 5.0
RIM WIDTH (max): 6.5
RIM WIDTH (standard): 5.5
SECTION WIDTH: 7.4
MAX LOAD (SINGLE): 1.235
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.1
REVs PER MILE: 851
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 24.5
WARRANTY: Limited
 Request a Quote

Part#: 1007091
TIRE SIZE: 205/65R15
LOAD INDEX: 94
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 15
RIM WIDTH (min): 55
RIM WIDTH (max): 75
RIM WIDTH (standard): 6.0
SECTION WIDTH: 82
MAX LOAD (SINGLE): 1,477
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.8
REVs PER MILE: 815
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 25.5
WARRANTY: Limited
 Request a Quote

Part#: 1007027
TIRE SIZE: 215/65R15 XL
LOAD INDEX: IOO
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 15
RIM WIDTH (min): 6.0
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 6.5
SECTION WIDTH: 8.7
MAX LOAD (SINGLE): 1,764
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.1
REVs PER MILE: 796
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 50
OVERALL DIAMETER: 26.1
WARRANTY: Limited
 Request a Quote

Part#: 1007126
TIRE SIZE: 205/7OR15
LOAD INDEX: 96
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 5.0
RIM WIDTH (max): 7.0
RIM WIDTH (standard): 6.0
SECTION WIDTH: 82
MAX LOAD (SINGLE): 1.565
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.5
REVs PER MILE: 786
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 26.4
WARRANTY: Limited
 Request a Quote

Part#: 1008134
TIRE SIZE: 215/70R15
LOAD INDEX: 98
SPEED RATING: S
SIDEWALL: DSB
RIM SIZE: 15
RIM WIDTH (min): 5.5
RIM WIDTH (max): 7.0
RIM WIDTH (standard): 6.5
SECTION WIDTH: 8.6
MAX LOAD (SINGLE): 1,653
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.6
REVs PER MILE: 770
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 27.0
WARRANTY: Limited
 Request a Quote

Part#: 1007001
TIRE SIZE: P205/75R15
LOAD INDEX: 97
SPEED RATING: S
SIDEWALL: DSB
RIM SIZE: 15
RIM WIDTH (min): 5.0
RIM WIDTH (max): 7.0
RIM WIDTH (standard): 5.5
SECTION WIDTH: 7.9
MAX LOAD (SINGLE): 1,595
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.3
REVs PER MILE: 764
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 27.2
WARRANTY: Limited
 Request a Quote

Part#: 1006806
TIRE SIZE: P215/75A15
LOAD INDEX: 100
SPEED RATING: S
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 5.5
RIM WIDTH (max): 7.0
RIM WIDTH (standard): 6.0
SECTION WIDTH: 8.5
MAX LOAD (SINGLE): 1,742
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.8
REVs PER MILE: 748
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 27.8
WARRANTY: Limited
 Request a Quote

Part#: 1007002
TIRE SIZE: P225F75R15
LOAD INDEX: 102
SPEED RATING: S
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 6.0
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 6.0
SECTION WIDTH: 6.7
MAX LOAD (SINGLE): 1,874
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.9
REVs PER MILE: 732
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 28.4
WARRANTY: Limited
 Request a Quote

Part#: 1007029
TIRE SIZE: P235RZ5R15
LOAD INDEX: 105
SPEED RATING: S
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 6.0
RIM WIDTH (max): 8.0
RIM WIDTH (standard): 6.5
SECTION WIDTH: 9.4
MAX LOAD (SINGLE): 2.028
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.4
REVs PER MILE: 672
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 30.9
WARRANTY: Limited
 Request a Quote

Part#: 1007028
TIRE SIZE: 225/50R16 XL
LOAD INDEX: 96
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 16
RIM WIDTH (min): 6.0
RIM WIDTH (max): 8.0
RIM WIDTH (standard): 7.0
SECTION WIDTH: 9.0
MAX LOAD (SINGLE): 1,565
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.4
REVs PER MILE: 834
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 50
OVERALL DIAMETER: 24.9
WARRANTY: Limited
 Request a Quote

Part#: 1006479
TIRE SIZE: 205F55R16
LOAD INDEX: 91
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 5.5
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 6.5
SECTION WIDTH: 8.3
MAX LOAD (SINGLE): 1,356
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.8
REVs PER MILE: 834
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 24.9
WARRANTY: Limited
 Request a Quote

Part#: 1007165
TIRE SIZE: 215/55R16 XL
LOAD INDEX: 97
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 16
RIM WIDTH (min): 6.0
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 7.0
SECTION WIDTH: 8.9
MAX LOAD (SINGLE): 1,609
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.8
REVs PER MILE: 821.
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 50
OVERALL DIAMETER: 25.3
WARRANTY: Limited
 Request a Quote

Part#: 1006472
TIRE SIZE: 205/60R16
LOAD INDEX: 92
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 16
RIM WIDTH (min): 5.5
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 6.0
SECTION WIDTH: 8.1
MAX LOAD (SINGLE): 1,389
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.8
REVs PER MILE: 808
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 25.7
WARRANTY: Limited
 Request a Quote

Part#: 1007094
TIRE SIZE: 21 5/60R16
LOAD INDEX: 95
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 6.0
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 6.5
SECTION WIDTH: 8.7
MAX LOAD (SINGLE): 1.521
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.1
REVs PER MILE: 792
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 26.2
WARRANTY: Limited
 Request a Quote

Part#: 1007163
TIRE SIZE: 225/60R16 XL
LOAD INDEX: 102
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 16
RIM WIDTH (min): 6.0
RIM WIDTH (max): 8.0
RIM WIDTH (standard): 6.5
SECTION WIDTH: 8.9
MAX LOAD (SINGLE): 1,874
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.4
REVs PER MILE: 778
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 50
OVERALL DIAMETER: 26.7
WARRANTY: Limited
 Request a Quote

Part#: 1008136
TIRE SIZE: 205/65R16
LOAD INDEX: 95
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 16
RIM WIDTH (min): 5.5
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 6.0
SECTION WIDTH: 8.1
MAX LOAD (SINGLE): 1,521
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.8
REVs PER MILE: 783
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 26.5
WARRANTY: Limited
 Request a Quote

Part#: 1007093
TIRE SIZE: 215165R16
LOAD INDEX: 98
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 6.0
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 6.5
SECTION WIDTH: 8.7
MAX LOAD (SINGLE): 1,653
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.1
REVs PER MILE: 769
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 27.0
WARRANTY: Limited
 Request a Quote

Part#: 1008137
TIRE SIZE: 215/45R17 XL
LOAD INDEX: 91
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 17
RIM WIDTH (min): 7.0
RIM WIDTH (max): 8.0
RIM WIDTH (standard): 7.0
SECTION WIDTH: 8.3
MAX LOAD (SINGLE): 1,356
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.1
REVs PER MILE: 840
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 50
OVERALL DIAMETER: 24.7
WARRANTY: Limited
 Request a Quote

Part#: 1007954
TIRE SIZE: 235/45R17 XL
LOAD INDEX: 97
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 17
RIM WIDTH (min): 7.5
RIM WIDTH (max): 9.0
RIM WIDTH (standard): 8.0
SECTION WIDTH: 9.2
MAX LOAD (SINGLE): 1,609
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.7
REVs PER MILE: 817
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 50
OVERALL DIAMETER: 25.4
WARRANTY: Limited
 Request a Quote

Part#: 1006473
TIRE SIZE: 21 5/55R17
LOAD INDEX: 94
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 6.0
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 7.0
SECTION WIDTH: 8.9
MAX LOAD (SINGLE): 1,477
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.1
REVs PER MILE: 790
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 26.3
WARRANTY: Limited
 Request a Quote

Part#: 1007179
TIRE SIZE: 225/55R17 XL
LOAD INDEX: 101
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 17
RIM WIDTH (min): 6.0
RIM WIDTH (max): 8.0
RIM WIDTH (standard): 7.0
SECTION WIDTH: 9.0
MAX LOAD (SINGLE): 1.810
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.4
REVs PER MILE: 753
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 50
OVERALL DIAMETER: 26-8
WARRANTY: Limited
 Request a Quote

Part#: 1008139
TIRE SIZE: P215F60R17
LOAD INDEX: 95
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 6.0
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 6.5
SECTION WIDTH: 6.6
MAX LOAD (SINGLE): 1,521
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.1
REVs PER MILE: 763
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 27.2
WARRANTY: Limited
 Request a Quote

Part#: 1007099
TIRE SIZE: 225/60R17
LOAD INDEX: 99
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 17
RIM WIDTH (min): 6.0
RIM WIDTH (max): 8.0
RIM WIDTH (standard): 6.5
SECTION WIDTH: 8.9
MAX LOAD (SINGLE): 1,709
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.4
REVs PER MILE: 750
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 27.7
WARRANTY: Limited
 Request a Quote

Part#: 1008132
TIRE SIZE: PI 95NOR14
LOAD INDEX: 90
SPEED RATING: S
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 5.0
RIM WIDTH (max): 6.5
RIM WIDTH (standard): 6.0
SECTION WIDTH: 7.8
MAX LOAD (SINGLE): 1,312
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.0
REVs PER MILE: 835
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 24.9
WARRANTY: Limited
 Request a Quote

Part#: 1008193
TIRE SIZE: 185/60R15 XL
LOAD INDEX: 88
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 15
RIM WIDTH (min): 5.0
RIM WIDTH (max): 6.5
RIM WIDTH (standard): 5.5
SECTION WIDTH: 7.4
MAX LOAD (SINGLE): 1.235
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 5.7
REVs PER MILE: 869
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 50
OVERALL DIAMETER: 23-9
 Request a Quote

Part#: 05208
TIRE SIZE: 195/65R15
LOAD INDEX: 91
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 15
RIM WIDTH (min): 5.5
RIM WIDTH (max): 7.0
RIM WIDTH (standard): 6.0
SECTION WIDTH: 7.9
MAX LOAD (SINGLE): 1.356
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.5
REVs PER MILE: 831
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 25.1
 Request a Quote

Part#: 100691
TIRE SIZE: 1 205/50R16
LOAD INDEX: 87
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 5.5
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 6.5
SECTION WIDTH: 8.2
MAX LOAD (SINGLE): 1,202
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.8
REVs PER MILE: 862
CONSTRUCTION:
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 24.2
 Request a Quote

Part#: 1006913
TIRE SIZE: 195/55R16
LOAD INDEX: 87
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 16
RIM WIDTH (min): 5.5
RIM WIDTH (max): 7.0
RIM WIDTH (standard): 6.0
SECTION WIDTH: 7.8
MAX LOAD (SINGLE): 1.201
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 6.5
REVs PER MILE: 848
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 24.5
 Request a Quote

Part#: 1007953
TIRE SIZE: 225/55R16 XL
LOAD INDEX: 99
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 16
RIM WIDTH (min): 6.0
RIM WIDTH (max): 8.0
RIM WIDTH (standard): 7.0
SECTION WIDTH: 9.1
MAX LOAD (SINGLE): 1609
TREAD DEPTH (32nds): 12.0
TREAD WIDTH: 7.4
REVs PER MILE: 804
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 50
OVERALL DIAMETER: 25.8
 Request a Quote

Part#: 10071
TIRE SIZE: 66 225/45R17 XL
LOAD INDEX: 94
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 7.0
RIM WIDTH (max): 8.5
RIM WIDTH (standard): 7.5
SECTION WIDTH: 8.7
MAX LOAD (SINGLE): 1,477
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.4
REVs PER MILE: 831
CONSTRUCTION:
MAX PRESSURE (SINGLE): 50
OVERALL DIAMETER: 25.0
 Request a Quote

Part#: 1009481
TIRE SIZE: 20W50R17 XL
LOAD INDEX: 93
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE:
RIM WIDTH (min): 5.5
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 6.5
SECTION WIDTH: 8.3
MAX LOAD (SINGLE): 1433
TREAD DEPTH (32nds): 12.0
TREAD WIDTH: 6.8
REVs PER MILE: 824
CONSTRUCTION:
MAX PRESSURE (SINGLE): 50
OVERALL DIAMETER: 25.2
 Request a Quote

Part#: 1010122
TIRE SIZE: 215/50R17
LOAD INDEX: 96
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 17
RIM WIDTH (min): 6.Q
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 7.0
SECTION WIDTH: 8.7
MAX LOAD (SINGLE): 1356
TREAD DEPTH (32nds): 12.13
TREAD WIDTH: 7.1
REVs PER MILE: 811
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 25.6
 Request a Quote

Part#: 1010123
TIRE SIZE: 225/50R17
LOAD INDEX: 94
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 17
RIM WIDTH (min): 6.0
RIM WIDTH (max): 8.0
RIM WIDTH (standard): 7.0
SECTION WIDTH: 9.0
MAX LOAD (SINGLE): 1477
TREAD DEPTH (32nds): 12.0
TREAD WIDTH: 7.4
REVs PER MILE: 798
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 26.0
 Request a Quote

Part#: 1010127
TIRE SIZE: 235/55R17
LOAD INDEX: 99
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 17
RIM WIDTH (min): 6.5
RIM WIDTH (max): 8.5
RIM WIDTH (standard): 7.5
SECTION WIDTH: 9.1
MAX LOAD (SINGLE): 1709
TREAD DEPTH (32nds): 12.0
TREAD WIDTH: 7.7
REVs PER MILE: 816
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 25.5
 Request a Quote

Part#: 1009488
TIRE SIZE: P215/65R17
LOAD INDEX: 98
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 17
RIM WIDTH (min): 6.0
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 6.5
SECTION WIDTH: 8.7
MAX LOAD (SINGLE): 1,653
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.1
REVs PER MILE: 742
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 28.0
 Request a Quote

Part#: 1010121
TIRE SIZE: 245/45R18
LOAD INDEX: 96
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 18
RIM WIDTH (min): 7.5
RIM WIDTH (max): 9.0
RIM WIDTH (standard): 8.0
SECTION WIDTH: 9.4
MAX LOAD (SINGLE): 1565
TREAD DEPTH (32nds): 12.0
TREAD WIDTH: 8.1
REVs PER MILE: 776
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 26.8
 Request a Quote

Part#: 1010124
TIRE SIZE: 225/50R18
LOAD INDEX: 95
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 18
RIM WIDTH (min): 6.0
RIM WIDTH (max): 8.0
RIM WIDTH (standard): 7.0
SECTION WIDTH: 9.1
MAX LOAD (SINGLE): 1521
TREAD DEPTH (32nds): 12.0
TREAD WIDTH: 7.4
REVs PER MILE: 769
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 27.0
 Request a Quote

Part#: 1010128
TIRE SIZE: 215/55R18
LOAD INDEX: 95
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 18
RIM WIDTH (min): 6.0
RIM WIDTH (max): 7.5
RIM WIDTH (standard): 7.0
SECTION WIDTH: 8.7
MAX LOAD (SINGLE): 1521
TREAD DEPTH (32nds): 12.0
TREAD WIDTH: 7.1
REVs PER MILE: 759
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 27.4
 Request a Quote

Part#: 1009489
TIRE SIZE: P225/60R18
LOAD INDEX: 99
SPEED RATING: T
SIDEWALL: DSB
RIM SIZE: 18
RIM WIDTH (min): 6.0
RIM WIDTH (max): 8.0
RIM WIDTH (standard): 6.5
SECTION WIDTH: 9.0
MAX LOAD (SINGLE): 1,709
TREAD DEPTH (32nds): 12.5
TREAD WIDTH: 7.4
REVs PER MILE: 726
CONSTRUCTION: R
MAX PRESSURE (SINGLE): 44
OVERALL DIAMETER: 28.6
 Request a Quote

West Herr Tires
Testimonials
Beth was very informative and has an excellent way with people. If she couldn't answer my questions, she took the time to go back and ask the technicians. Because of that, I went back a week later to have the front brakes done at your Chevy Hamburg store. THANK YOU!
Jack
Click here to read more.

Top Brands
Top Services
15 Locations
Factory Promotions
